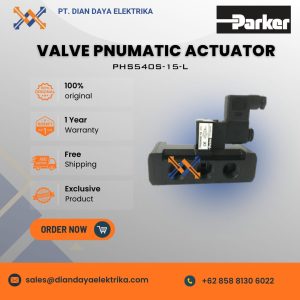

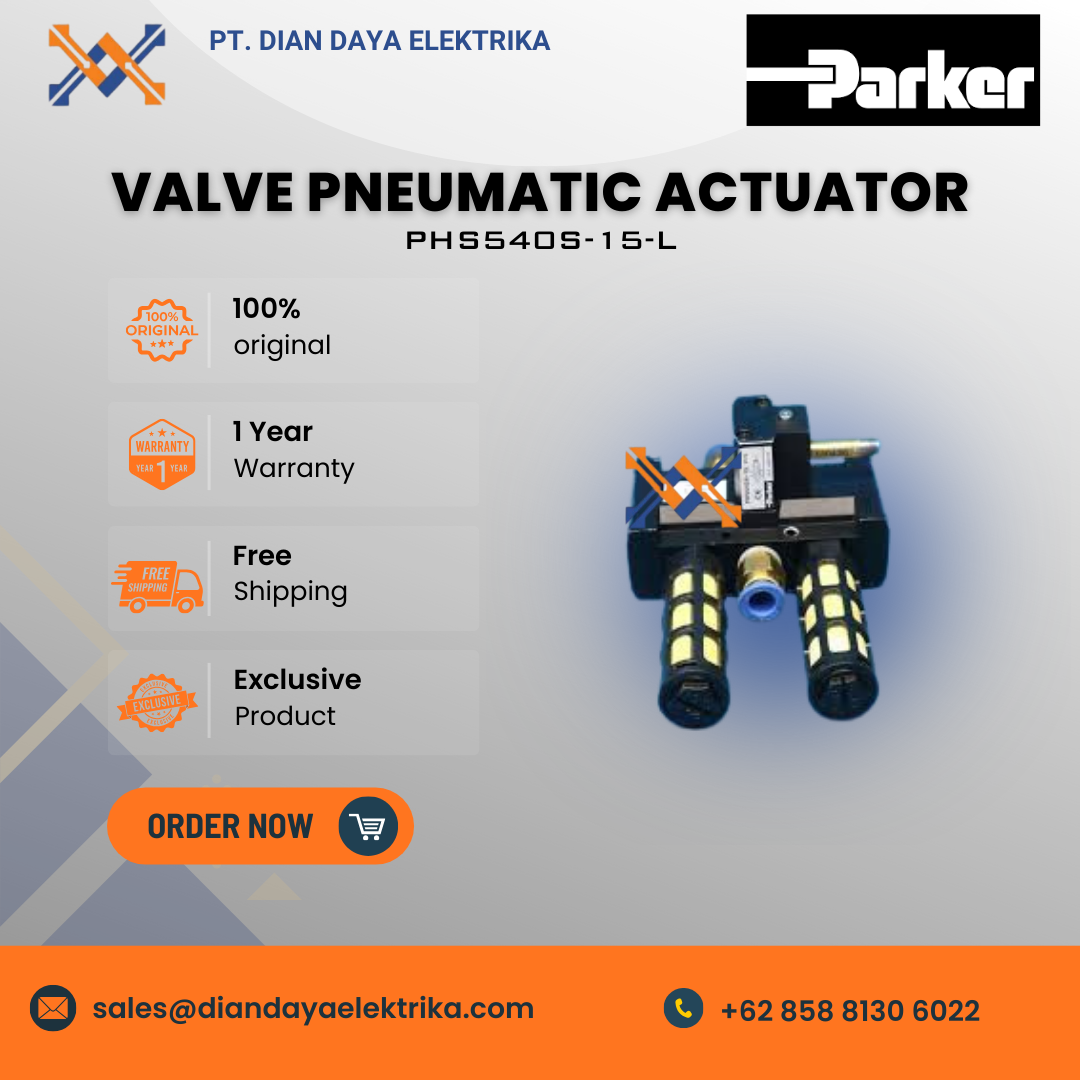

Parker Valve Pneumatic Actuator PHS540S-15-L

The Parker PHS540S-15-L is a 5/2-way pneumatic solenoid valve,  It is designed to control the flow direction of compressed air to operate a double-acting pneumatic actuator.

Specification:

• Product Series: PHS Series. These valves are known for offering large flow capacity in a compact and lightweight design.
• Valve Type: 5-port, 2-position (5/2-way) single solenoid pilot operated valve.
• Port Size: 1/2 inch (PT/Rc thread type).
• Input Supply Voltage: AC 220V (Alternating Current 220 Volts). The “-L” suffix often indicates a lead wire electrical connection or a lamp indicator feature, depending on the specific product variation.
• Flow Capacity: Cv 3.0 (Effective Area approx. 56 mm²).
• Operating Pressure Range: 0.15 to 0.9 MPa (equivalent to 1.5 to 9.0 bar or 22 to 130 psi).
• Media: Filtered compressed air (can be lubricated or non-lubricated).
• Operating Temperature Range: 5 to 60 °C (41 to 140 °F).
