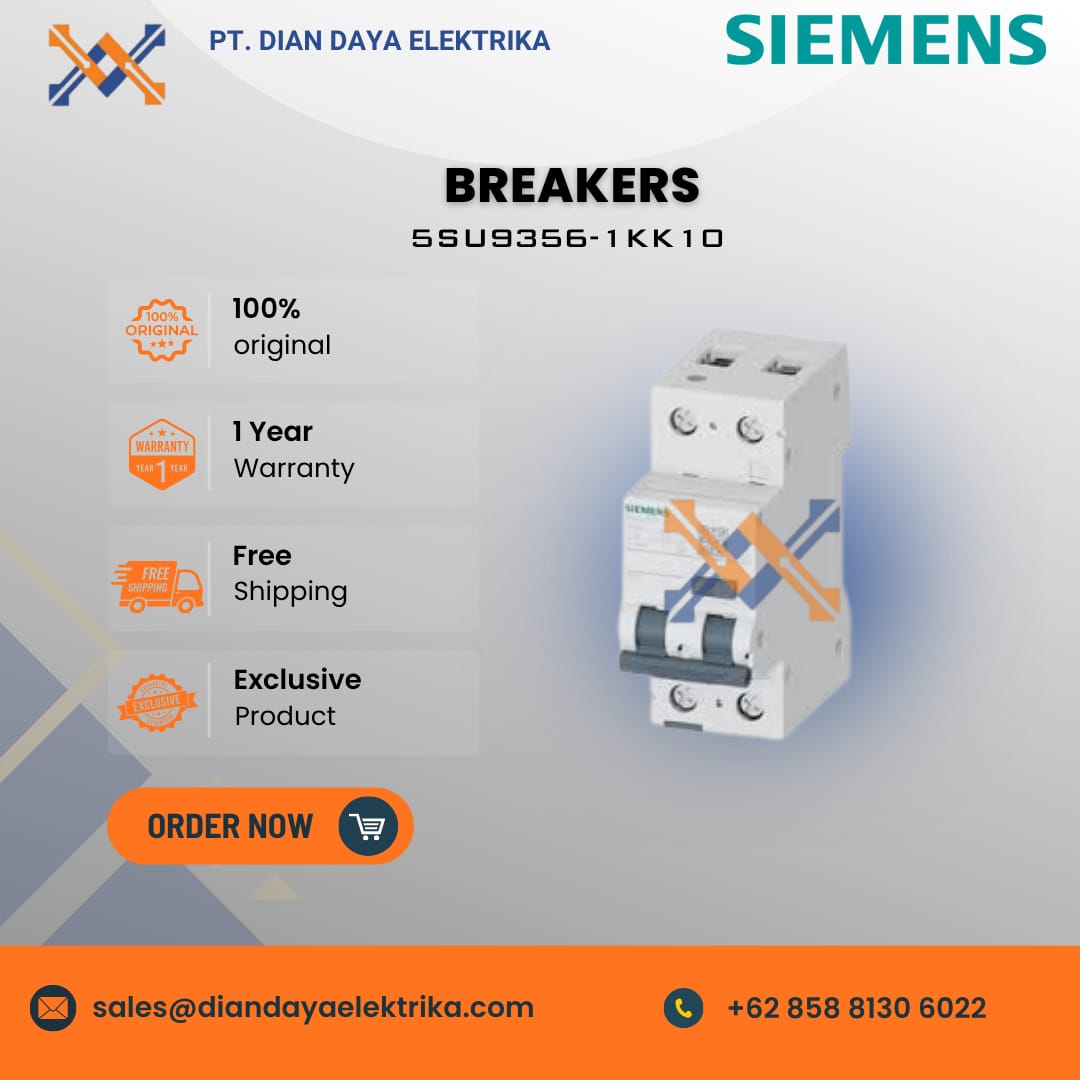

Siemens Breaker 5SU9356-1KK10

The Siemens 5SU9356-1KK10 is an RCBO (Residual Current Circuit Breaker with Overcurrent protection) designed for electrical circuit protection. It combines the functions of a miniature circuit breaker (MCB) and a residual current circuit breaker (RCCB) in a single device.

Technical Specification:

• Product Type: RCBO
• Rated Residual Current: 30 mA, offering protection against direct electric shock.
• Operating Frequency: 50 Hz
• Mounting: Can be installed in any position and has 2 modular width units (36 mm).

Dimension:

• Height: 90 mm
• Width: 36 mm
• Installation Depth: 70 mm
• Net Weight: 272 g
• Ambient Temperature (Operation): Minimum -25 °C to maximum +45 °C
• Storage Temperature: Minimum -40 °C to maximum +75 °C
• IP Protection Class: IP20, when installed in a distribution board with connected conductors.
