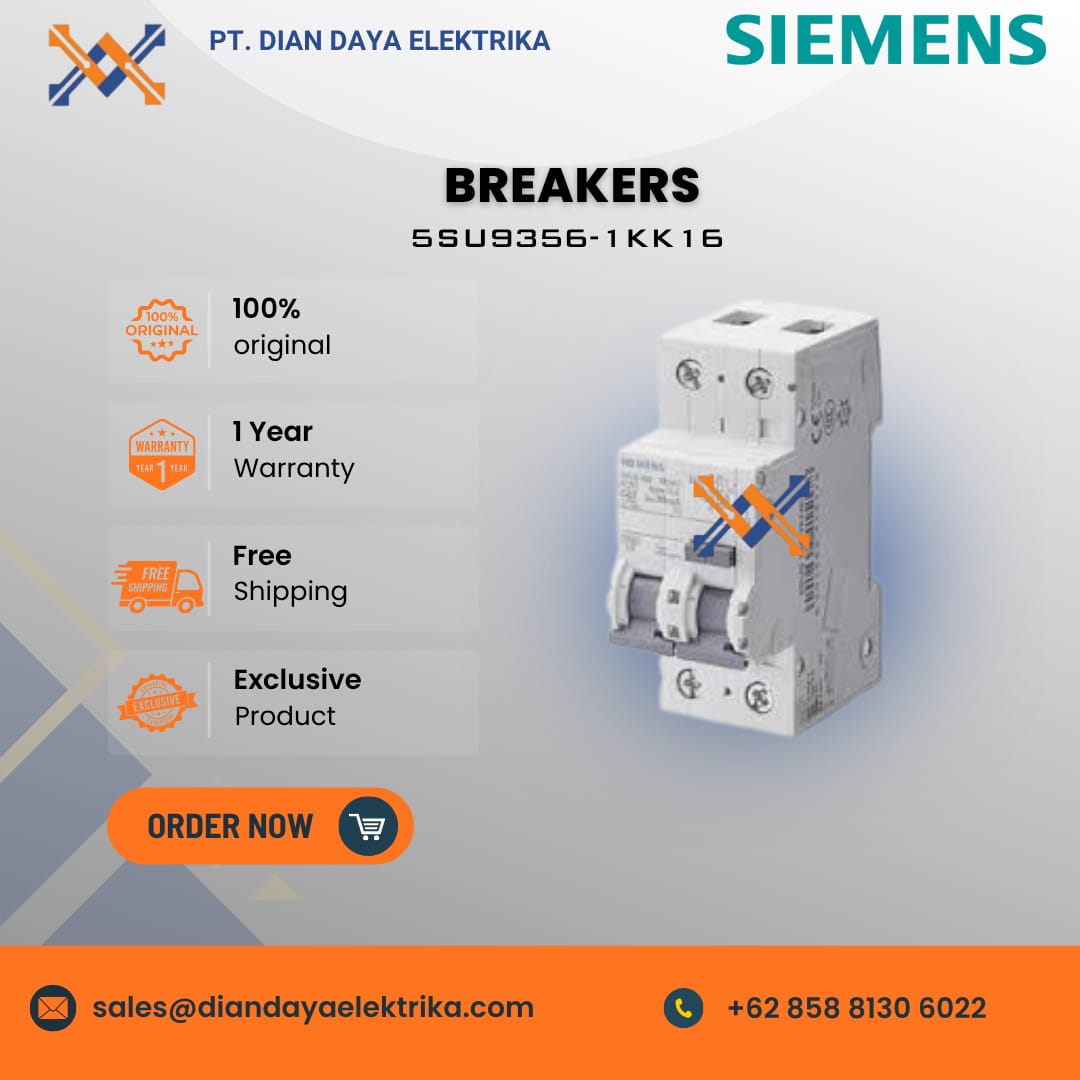

Siemens Breaker 5SU9356-1KK16

The Siemens 5SU9356-1KK16 is a Residual Current Circuit Breaker with Overcurrent protection (RCBO). This device provides both miniature circuit breaker (MCB) functionality for overload and short-circuit protection, and residual current (earth leakage) protection.

Specification:

• Product Type: RCBO (Residual Current Circuit Breaker with Overcurrent protection)
• Number of Poles: 1P+N (1 protected pole + Neutral conductor switching).
• Rated Current (In): 16 A.
• Rated Residual Current (Sensitivity): 30 mA (AC type).
• Rated Breaking Capacity (Icn): 6 kA (according to EN 61009-1).
• Rated Operating Voltage (Un AC): 230 V AC.
• Installation Depth: 70 mm.
• Standards: IEC 61009-1, IEC 61009-2-2.
