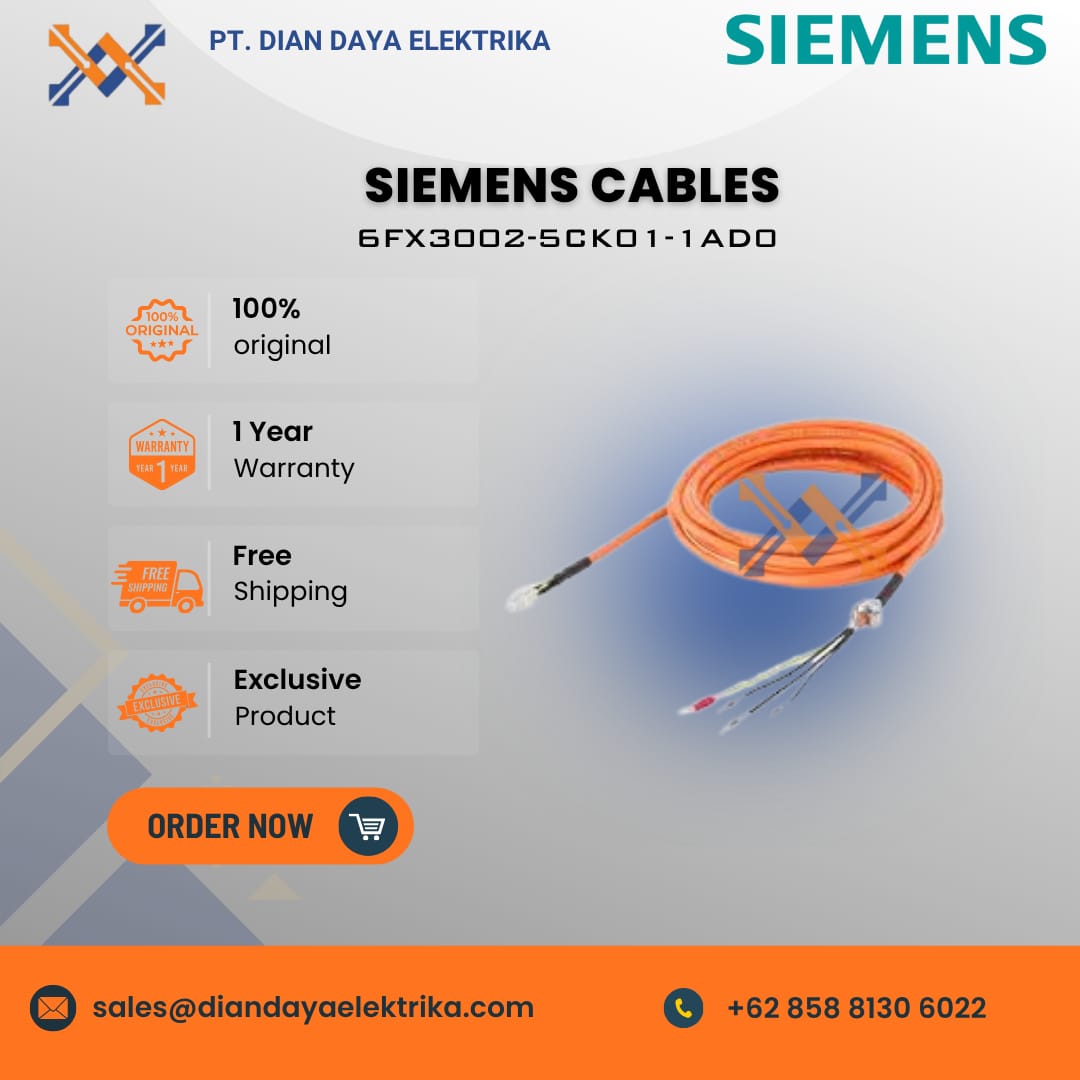

Siemens Cable 6FX3002-5CK01-1AD0

Siemens 6FX3002-5CK01-1AD0 is a pre-assembled power cable specifically designed for connecting Siemens S-1FL6 servo motors to SINAMICS V90 drives.

Specification:

• Product Type: Pre-assembled power cable/cordset.
• Cable Configuration: It has 4 cores with a cross-section of 0.75 mm² per core.
• Length: The cable length is 3 meters.
• Outer Diameter: The maximum outer diameter of the cable is 7.1 mm.
• Mechanical Resistance:
  • Suitable for flexible installation (in cable chains) with a minimum bending radius of 155 mm and up to 1,000,000 bends.
  • Maximum tensile stress for fixed installation is 50 N/mm², and for flexible installation is 20 N/mm².
