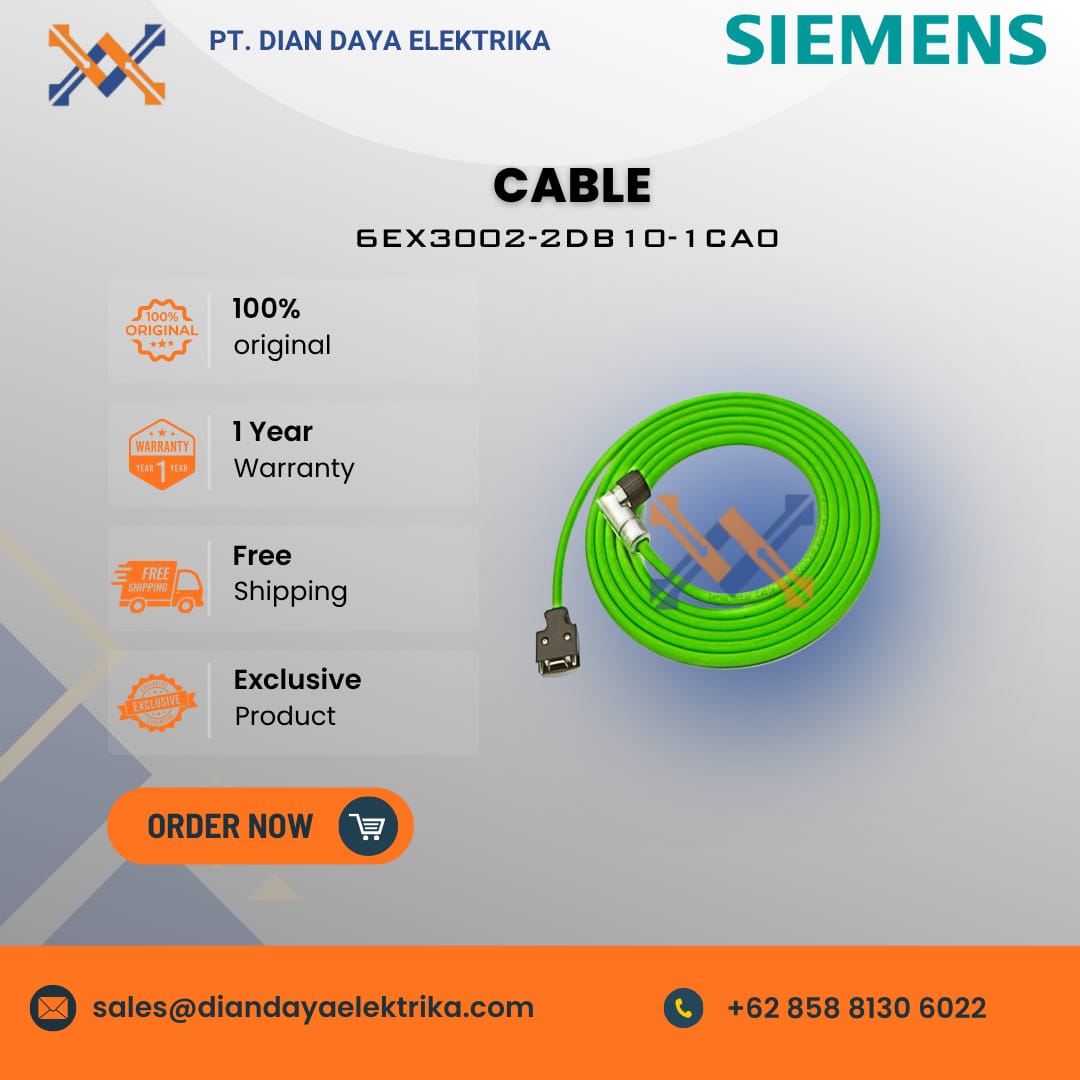

Siemens Cables 6EX3002-2DB10-1CA0

The Siemens 6FX3002-2DB10-1CA0 (using “FX” instead of “EX”), as “6FX” refers to the Siemens MOTION-CONNECT cabling system. This item is a pre-assembled signal cable with a length of 20 meters, designed specifically for Siemens servo motors.

Specification:

• Product Type: Pre-assembled signal cable/cordset.
• Series: Part of the MOTION-CONNECT 300 connection system, suitable for the SINAMICS V90 series.
• Length: 20 meters.
• Connector: Equipped with a straight M12 plug-in connector. An alternative may have an angular connector.Cable Construction:
  • Number of cores: 10-core.
  • Conductor configuration: 3x 2x 0.22 + 2x 2x 0.25 mm².
  • Outer diameter (Dmax): 7.8 mm.

This cable is used to transmit feedback signals from the absolute encoder on the servo motor to the SINAMICS V90 drive for precise motion control.
