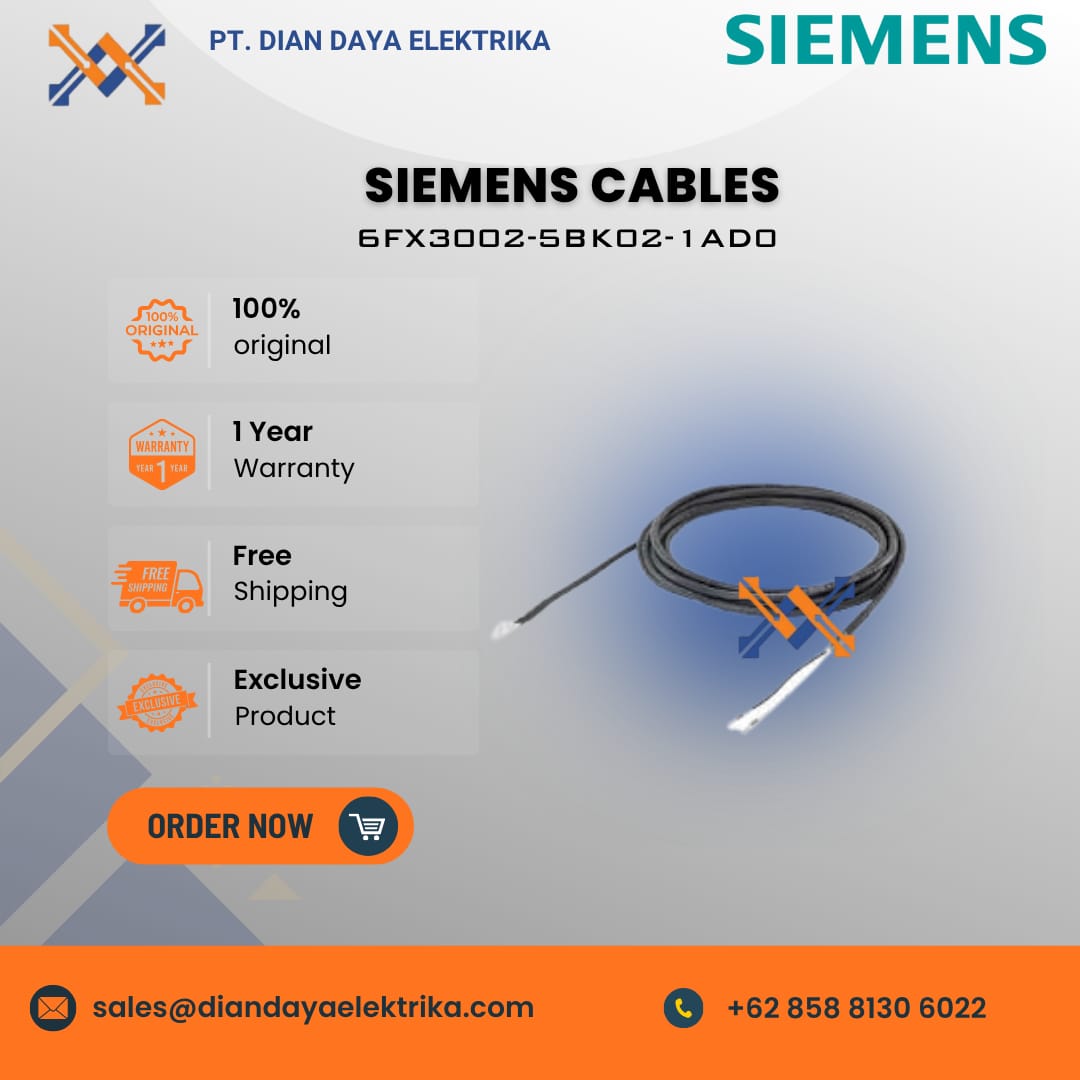

Siemens Cables 6FX3002-5BK02-1AD0

The Siemens 6FX3002-5BK02-1AD0 cable is a pre-assembled brake cable designed for use with Siemens S-1FL6 LI servo motors and SINAMICS V90 230V drive systems. It is part of the MOTION-CONNECT 300 connection system.

Specification:

Cable Type: Pre-assembled brake/signal cable (cordset) with a holding brake function.
Application: Connects S-1FL6 LI servo motors to the SINAMICS V90 230V drive system.
Connection System: MOTION-CONNECT 300.
Outer Diameter (Dmax): 6.4 mm.
Length: 3 meters.
Conductor: 2 cores (2×0.75 mm²).
Material: PVC sheath, oil-resistant, and flame-retardant properties.
Rated Voltage: 30V AC.
Net Weight: Approximately 0.169 kg.
Country of Origin: China.

This cable ensures reliable signal transmission and brake functionality within industrial automation setups using compatible Siemens motors and drives.
