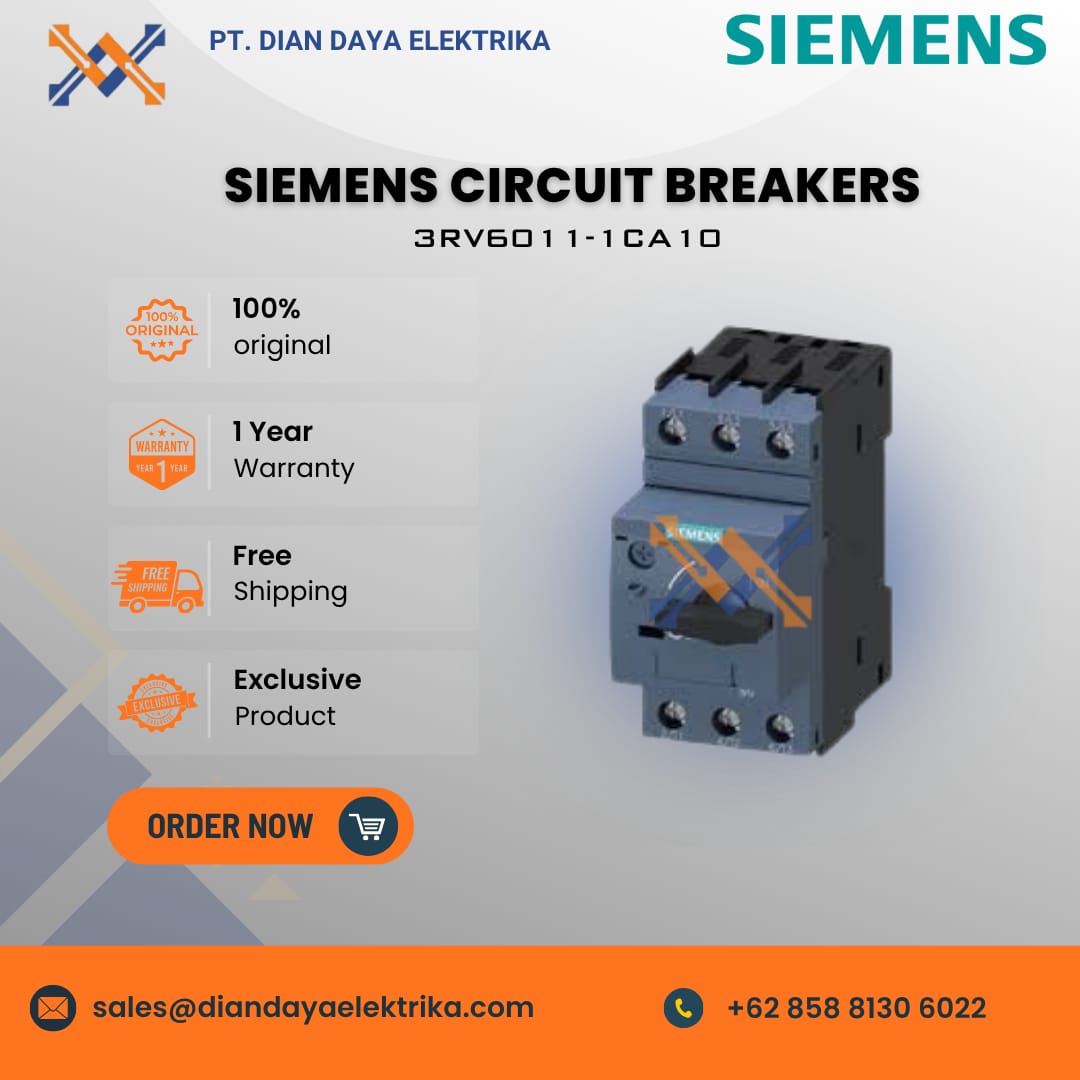

Siemens Circuit Breaker 3RV6011-1CA10

The Siemens 3RV6011-1CA10 is a compact motor protection circuit breaker (MPCB) which is optimized for use in load feeders. It is designed to reliably protect electric motors from overloads and short circuits.

Specification:

Product Type: Motor Protection Circuit Breaker (MPCB).
Rated Current: 2.5 A.
Short-Circuit Breaking Capacity (Icu): 100 kA at 400 V and 500 V; 10 kA at 690 V.
Connection Type: Screw terminals.
Mounting: Can be screw-mounted or snapped onto a standard 35 mm DIN EN 60715 mounting rail.
Size: S00.

Applications:

Comprehensive Protection: Provides protection against both overload and short circuits.
Compact Design: Optimized to save space in control panels.
