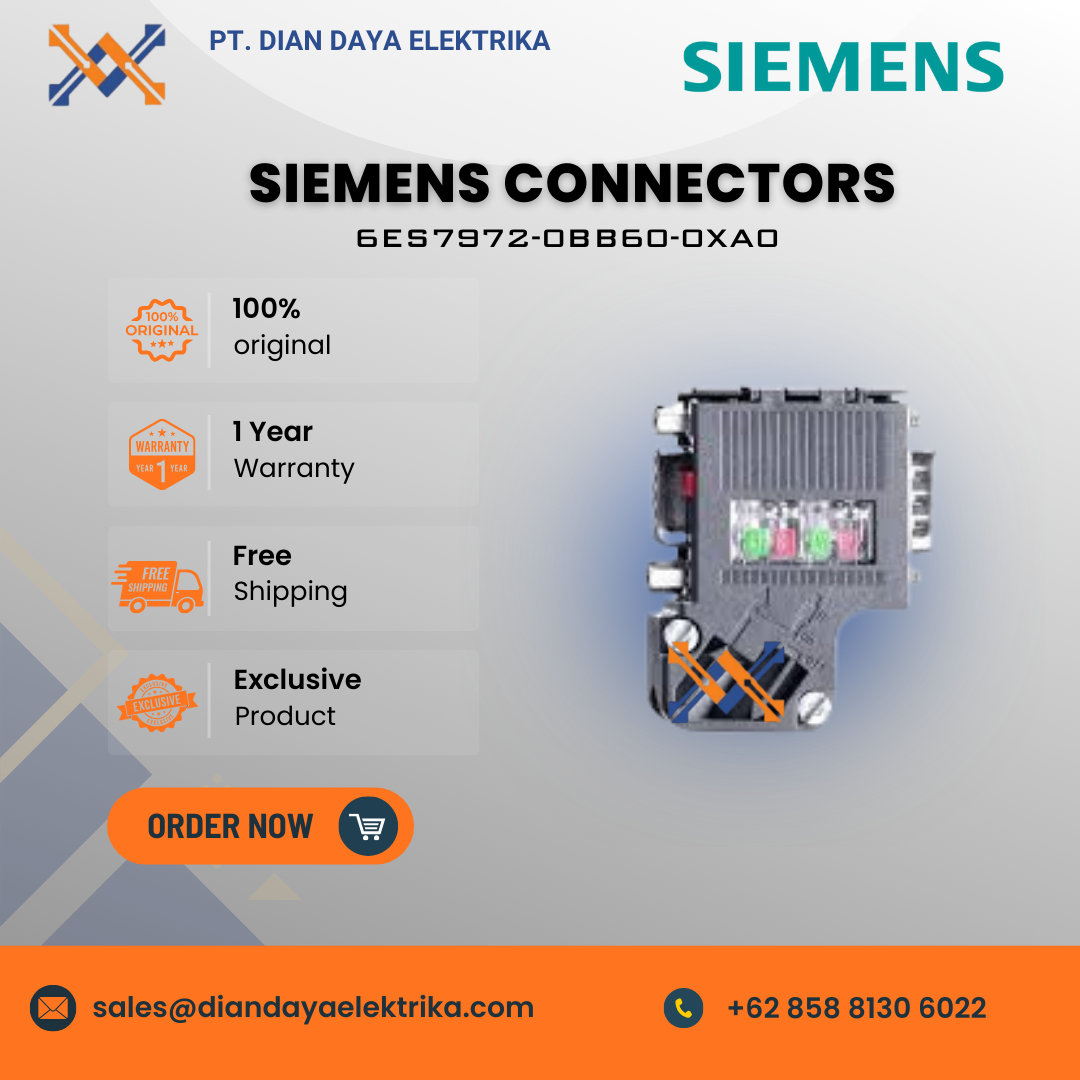

Siemens Connectors 6ES7972-0BB60-0XA0

The Siemens 6ES7972-0BB60-0XA0 is a SIMATIC DP PROFIBUS bus connector designed for industrial automation networks, supporting data transfer rates up to 12 Mbit/s.

Specification:

• Connector Type: PROFIBUS RS 485 bus connector.
• Data Transfer Rate: Supports speeds from 9.6 kbit/s up to 12 Mbit/s.
• Cable Outlet: Designed with a 35-degree angled cable outlet, facilitating flexible routing in confined spaces.
• Design: Compact dimensions of 15.8 mm (W) x 54 mm (H) x 39.5 mm (D).
• Termination: Integrated terminating resistors are included and can be switched on or off using a slide switch.

This connector is a reliable component for ensuring dependable communication within PROFIBUS DP-based automation systems.
