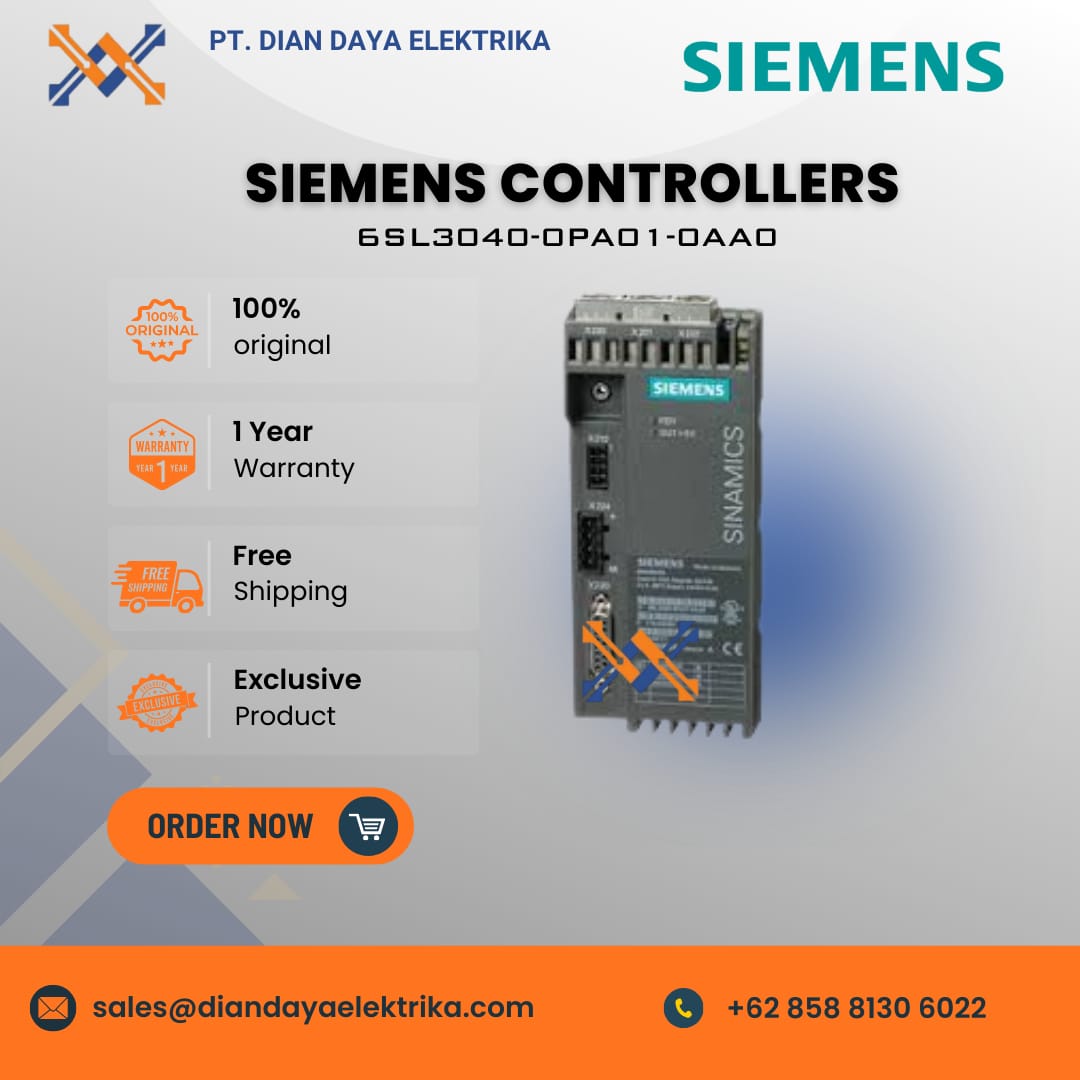

Siemens Controllers 6SL3040-0PA01-0AA0

The Siemens 6SL3040-0PA01-0AA0 is a CUA32 Control Unit Adapter used in the SINAMICS S120 drive system to interface with PM340 and PM240-2 power modules. It evaluates incremental and absolute encoders for precise motion control applications.

Specification:

• Product Type :CUA32 Control Unit Adapter.
• Power Supply: 24 V DC.
• Max. Power Loss: 2.6 W.
• Max. Cable Length (HTL bipolar): 300 m (984.25 ft).
• Max. Cable Length (TTL/HTL unipolar/SSI): 100 m (328.08 ft).
• Dimensions (W x H x D): 73 mm x 165.8 mm x 37.3 mm (2.87 in x 6.53 in x 1.47 in).
• Net Weight: 0.32 kg (0.71 lb).
