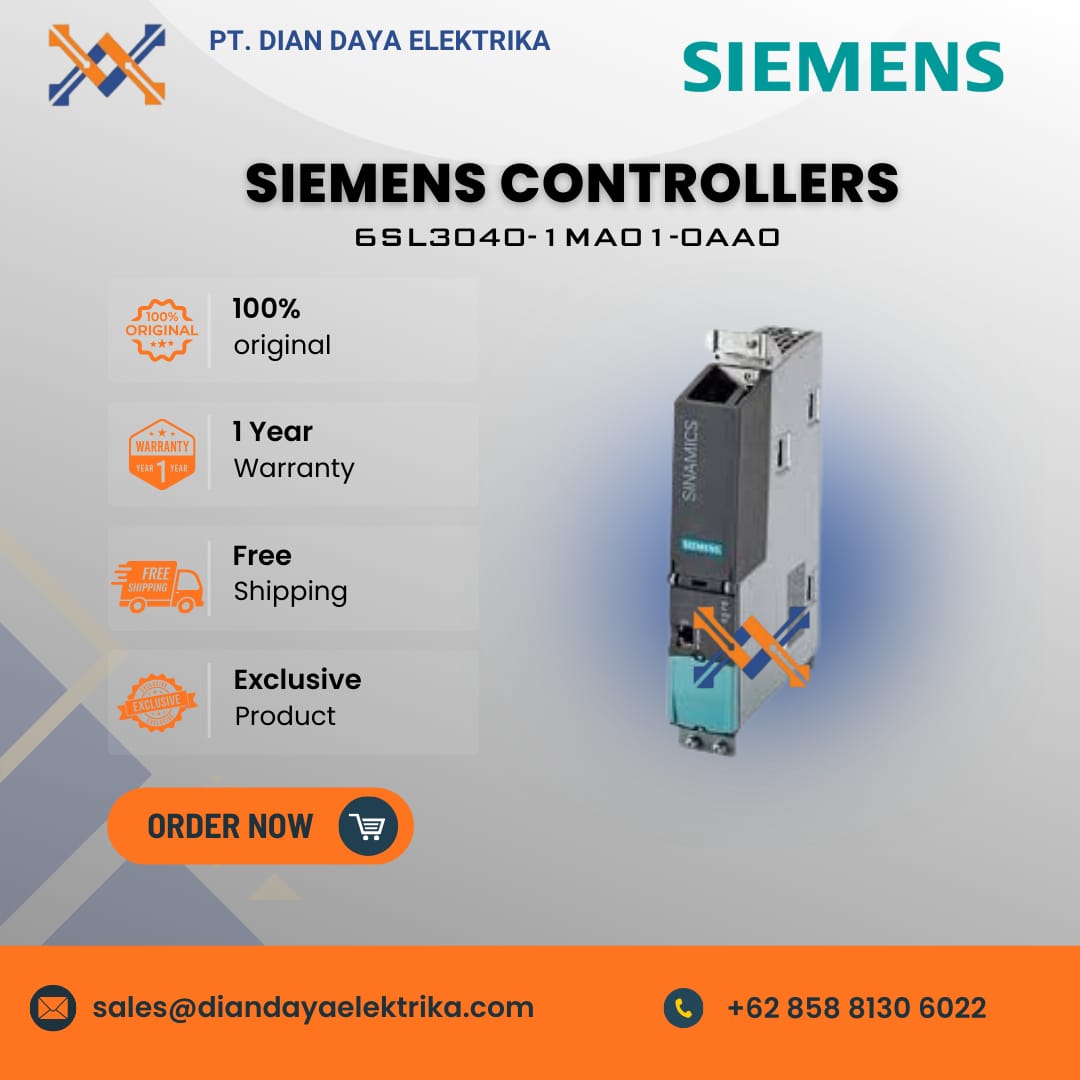

Siemens Controllers 6SL3040-1MA01-0AA0

The Siemens 6SL3040-1MA01-0AA0 is a SINAMICS Control Unit CU320-2 PN, a central control module for the Siemens SINAMICS S120 multi-drive system. This unit manages open-loop and closed-loop control functions for several line and motor modules but is sold without the essential Compact Flash card.

Specification:

• Product Type: Control Unit.
• Product Family: Part of the high-performance SINAMICS S120 drive system.
• Function: Central control module for implementing complex control functions across multiple Motor Modules and Line Modules.
• Connectivity: Features integrated PROFINET (PN) ports, Ethernet interface, 4 DRIVE-CLiQ interfaces, and an RS232 serial interface.
• Axis Capacity: Capable of managing up to 6 high-performance servo/vector axes or up to 12 V/Hz axes.
• I/O Flexibility: Equipped with 12 digital inputs, 8 digital inputs/outputs, and 3 measuring sockets.
• Note: A Compact Flash card (sold separately) is mandatory for operation, as it stores the firmware and licensing information.
• Dimensions: The unit’s net weight is approximately 2.2 kg (4.85 lb), with dimensions of 50 mm (width) x 226 mm (depth) x 300 mm (height).
