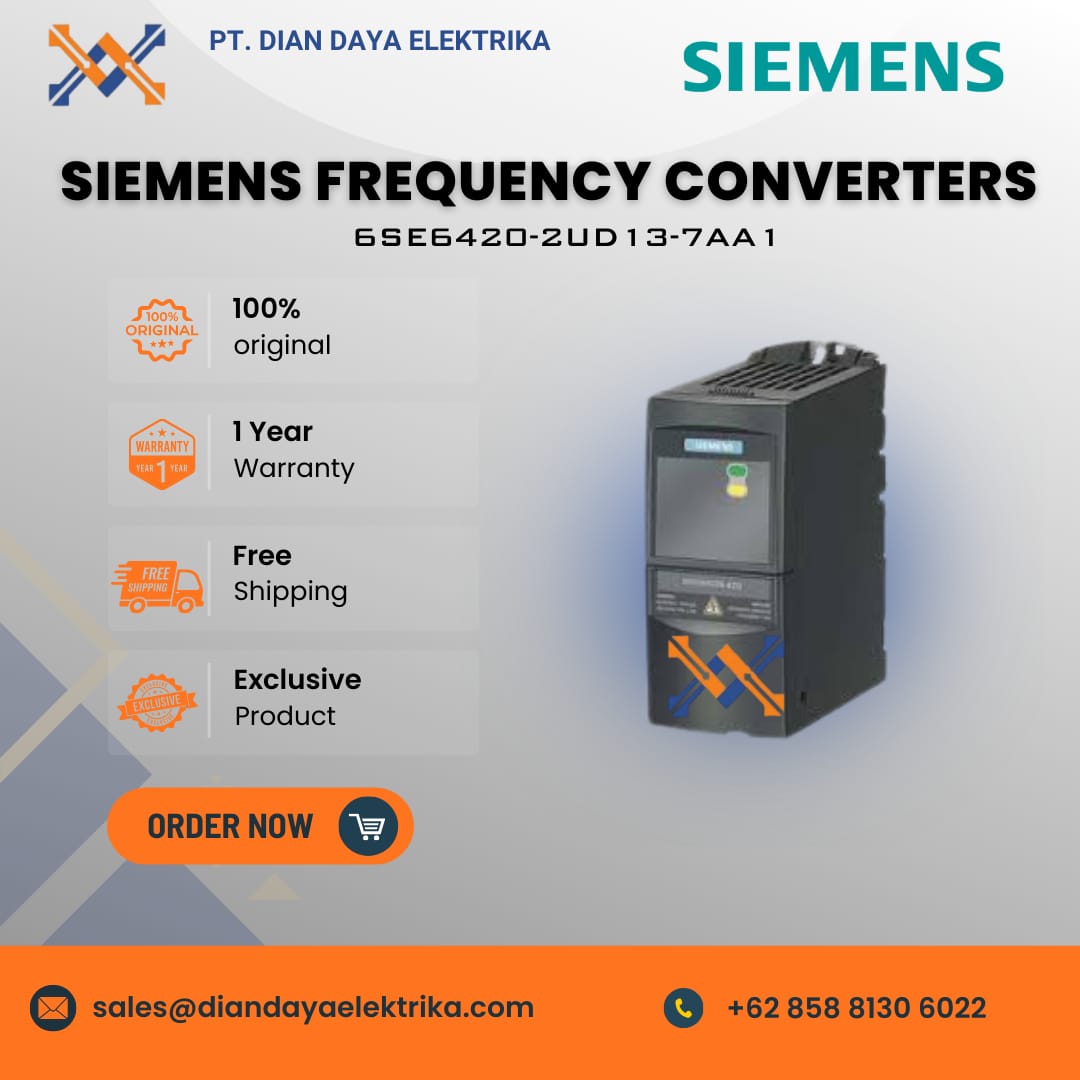

Siemens Frequency Converters 6SE6420-2UD13-7AA1

The Siemens Frequency Converter 6SE6420-2UD13-7AA1 is a MICROMASTER 420 series AC inverter designed for controlling 3-phase motors in general industrial applications such as pumps, fans, and conveyor systems, without an integrated filter.

Specification:

• Rated Power (Constant Torque) 0.37 kW / 0.50 hp.
• Line Voltage (Input) 3 AC 380 … 480 V ±10%.
• Line Frequency (Input) 47 … 63 Hz.
• Protection Degree IP20.
• EMC Filter Unfiltered (without integrated filter).
• Dimensions (H x W x D) 173 mm x 73 mm x 149 mm.

Features:

• Modular Design: The design allows for easy exchange of operator panels (AOP/BOP) and communication modules (e.g., PROFIBUS or CANopen) without the need for tools.
• Control Modes: Supports linear V/f characteristic, quadratic V/f characteristic, multipoint characteristic (programmable V/f), and Flux Current Control (FCC).
• Ease of Use: Known for its simple configuration and operation, it can often be used with its default factory settings for basic applications.
• Applications: Suitable for stand-alone applications in material transport, pumps, and fans.
