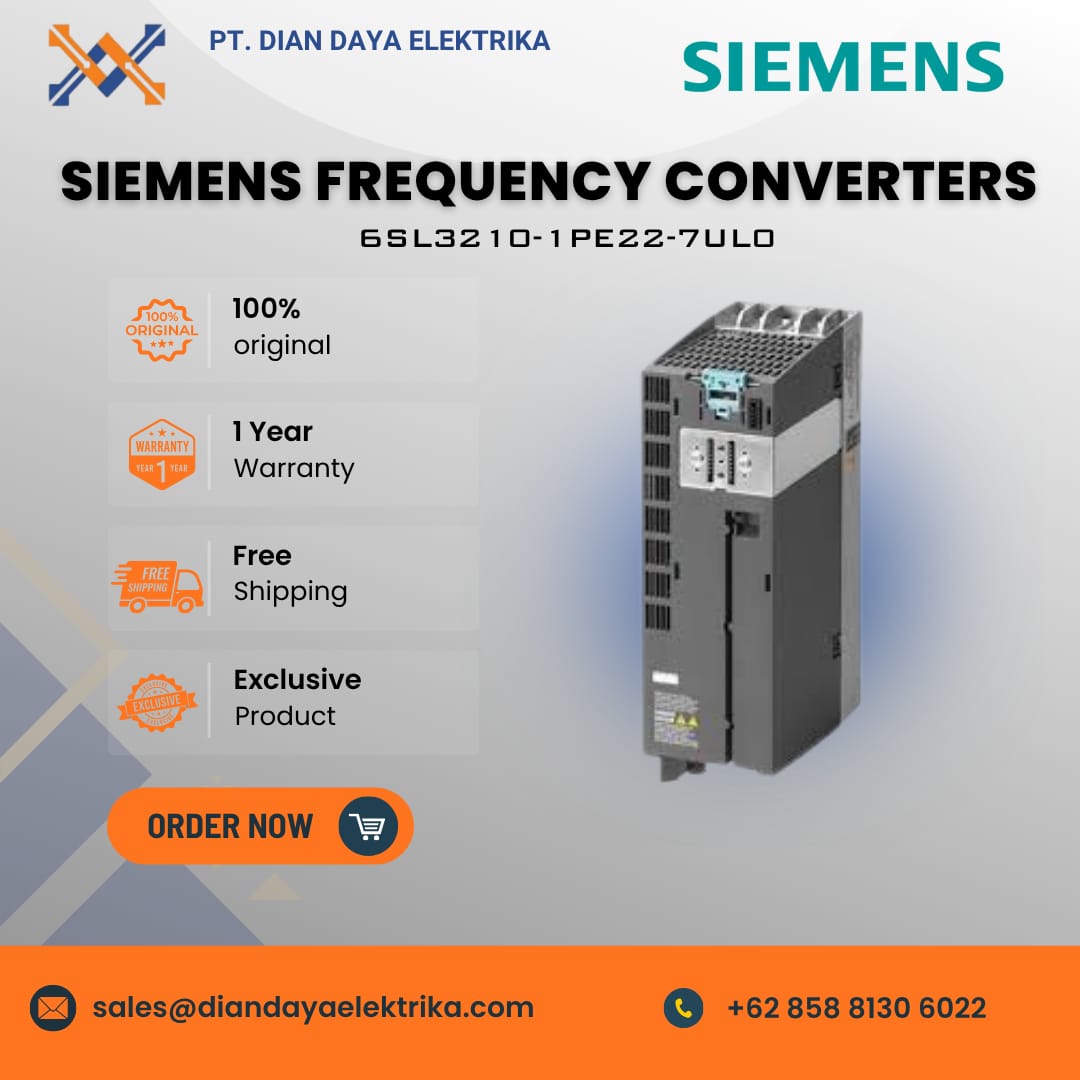

Siemens Frequency Converters 6SL3210-1PE22-7UL0

The Siemens 6SL3210-1PE22-7UL0 power module is a specific component from the SINAMICS PM240-2 series, designed for industrial motor control applications.

Specification:

• Product Type: SINAMICS PM240-2 Power Module.
• Part Number: 6SL3210-1PE22-7UL0.
• Input Voltage: 3 AC 380-480 V (+10% / -10%), 47-63 Hz frequency.
• Internal Features: Integrated braking chopper and without a built-in filter.
• High Overload Capacity (HO):
  • Output Power: 7.5 kW.
  • Overload capacity: 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds.
  • Ambient temperature: -10 to +50 degrees Celsius.
  • Low Overload Capacity (LO):
    • Output Power: 11 kW.
    • Overload capacity: 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds.
    • Ambient temperature: -10 to +40 degrees Celsius.

This module functions as part of a SINAMICS drive system, converting AC power to DC power to control the speed of an electric motor.
