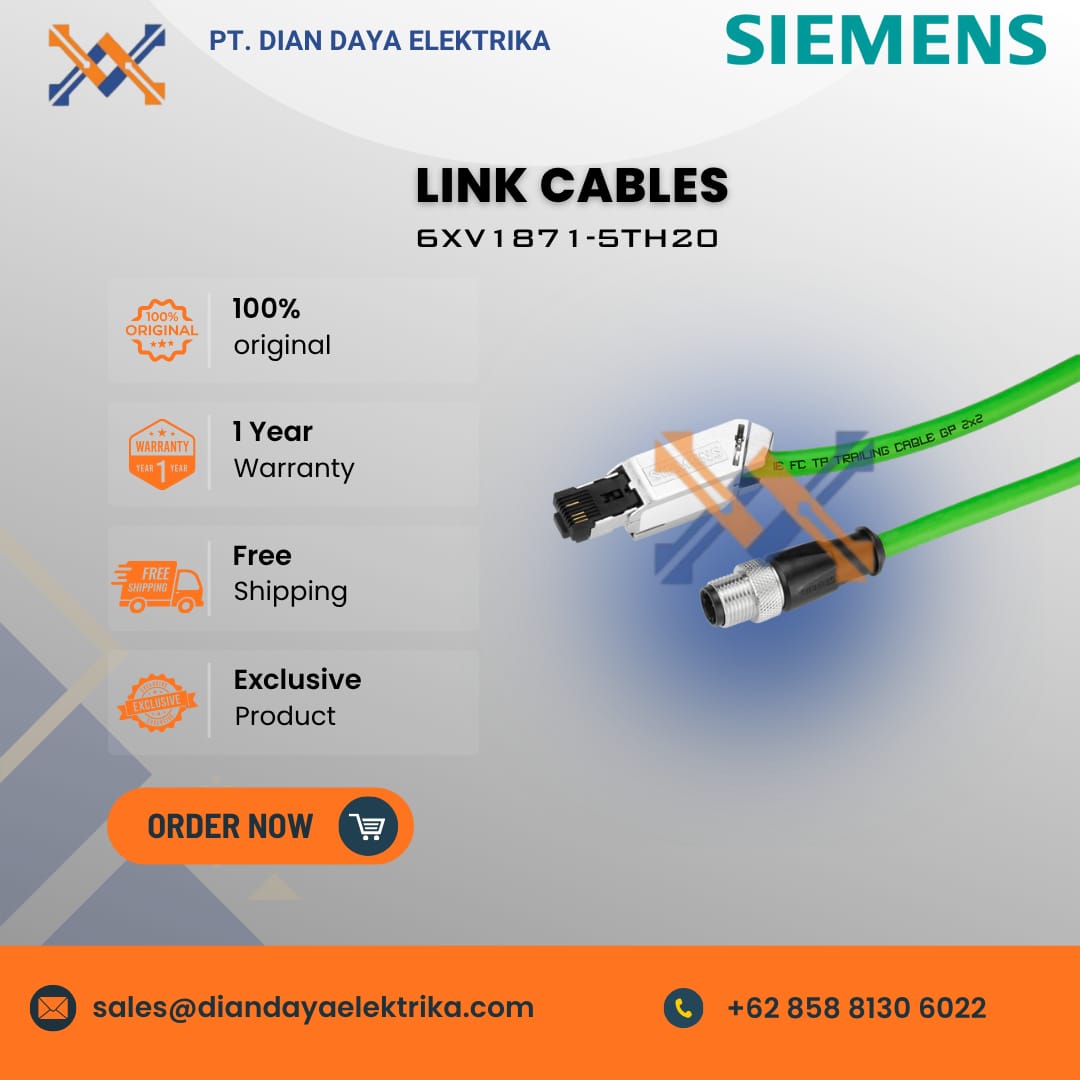

Siemens Link Cable 6XV1871-5TH20

The Siemens 6XV1871-5TH20 is a pre-assembled Industrial Ethernet (IE) connecting cable with a length of 2.0 meters, specifically designed for continuously moving applications, such as those found in drag chains.

Specification:

• Cable Type: Flexible cable (IE FC Trailing cable GP) with 4 cores.
• Connectors: Pre-assembled with a M12 connector (D-coded, 180° angle) on one end and an IE FC RJ45 plug (145° angle) on the other.
• Length: The cable length is 2.0 meters.
• High Performance: Suitable for data transfer rates of 10/100 Mbit/s.
• Durability: Designed for high durability in moving applications, suitable for up to 3 million bending cycles in a drag chain with a bending radius of 100 mm, speed of 4 m/s, and acceleration of 4 m/s².
• Environmental Protection:
  • Silicone-free: Yes, making it suitable for use in the automotive industry (e.g., paint lines).
  • Halogen-free: No.
  • Operating Temperature: Wide operating temperature range of -25 to +75 °C.
• Construction: Double-shielded cable (overlapped aluminum-clad foil and a braided screen of tin-plated copper wires) to ensure reliable signal transmission and interference immunity.
• Color: The outer sheath of the cable is green.

This cable is ideal for connecting Industrial Ethernet devices in harsh industrial environments that require constant movement between machine components.
