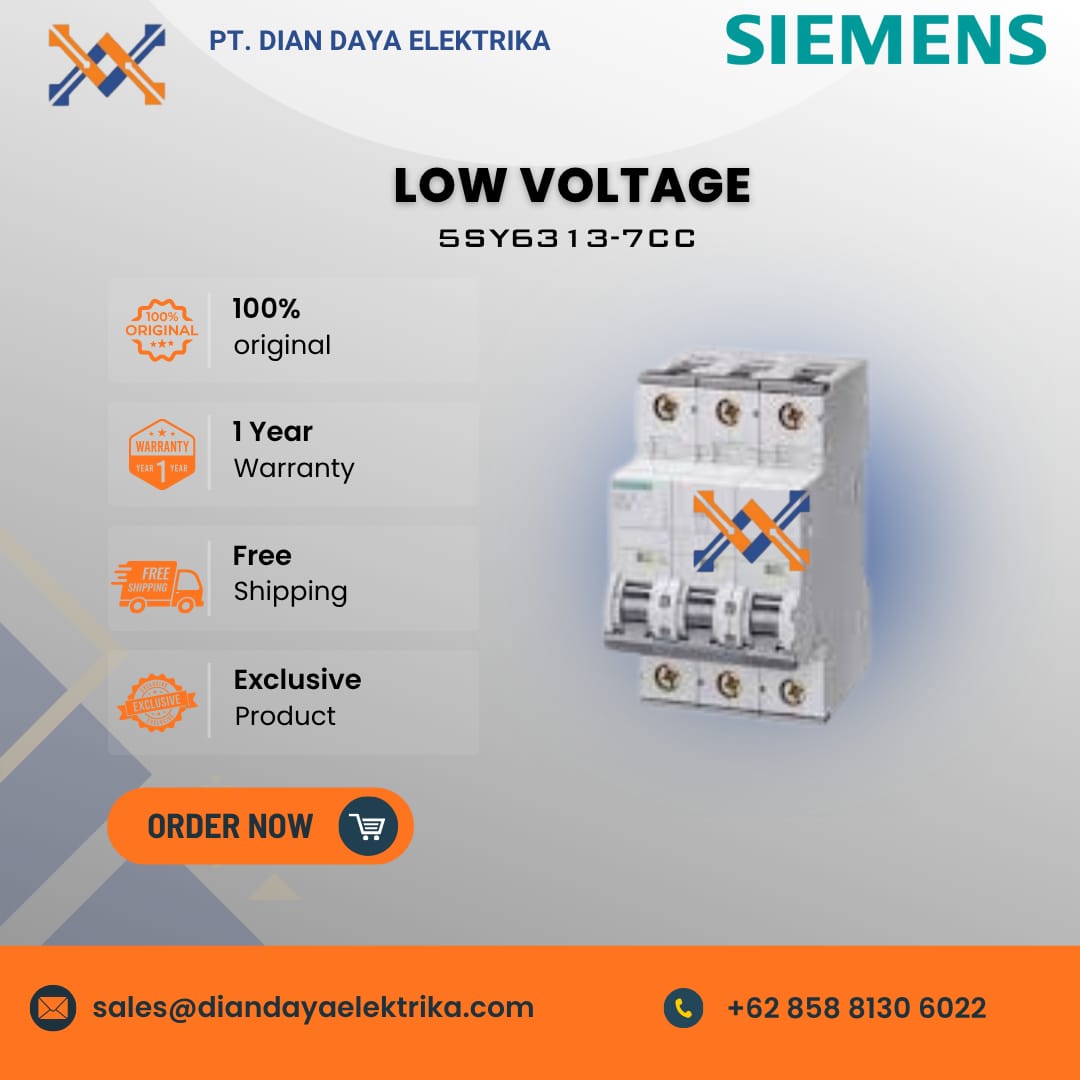

Siemens Low Voltage 5SY6313-7CC

The Siemens 5SY6313-7CC is a 3-pole low-voltage miniature circuit breaker (MCB) designed for the protection of electrical circuits against overloads and short circuits.

Specification:

• Protection Function: Protects electrical installations and equipment from damage caused by overloads and short circuits.
• Number of Poles: 3-pole (3P).
• Rated Current (In): 13 A.
• Mechanical Endurance (typical): 10,000 operating cycles.
• Connectable Conductor Cross-Section:
  • Solid: 0.75 – 35 mm².
  • Finely stranded with insulated end sleeve: 0.75 – 25 mm².
• Ambient Operating Temperature: -25 to +55 °C.
• Dimensions (W x H x D): 54 x 90 x 76 mm.
