Siemens Modules 6ES7155-6AR00-0AN0

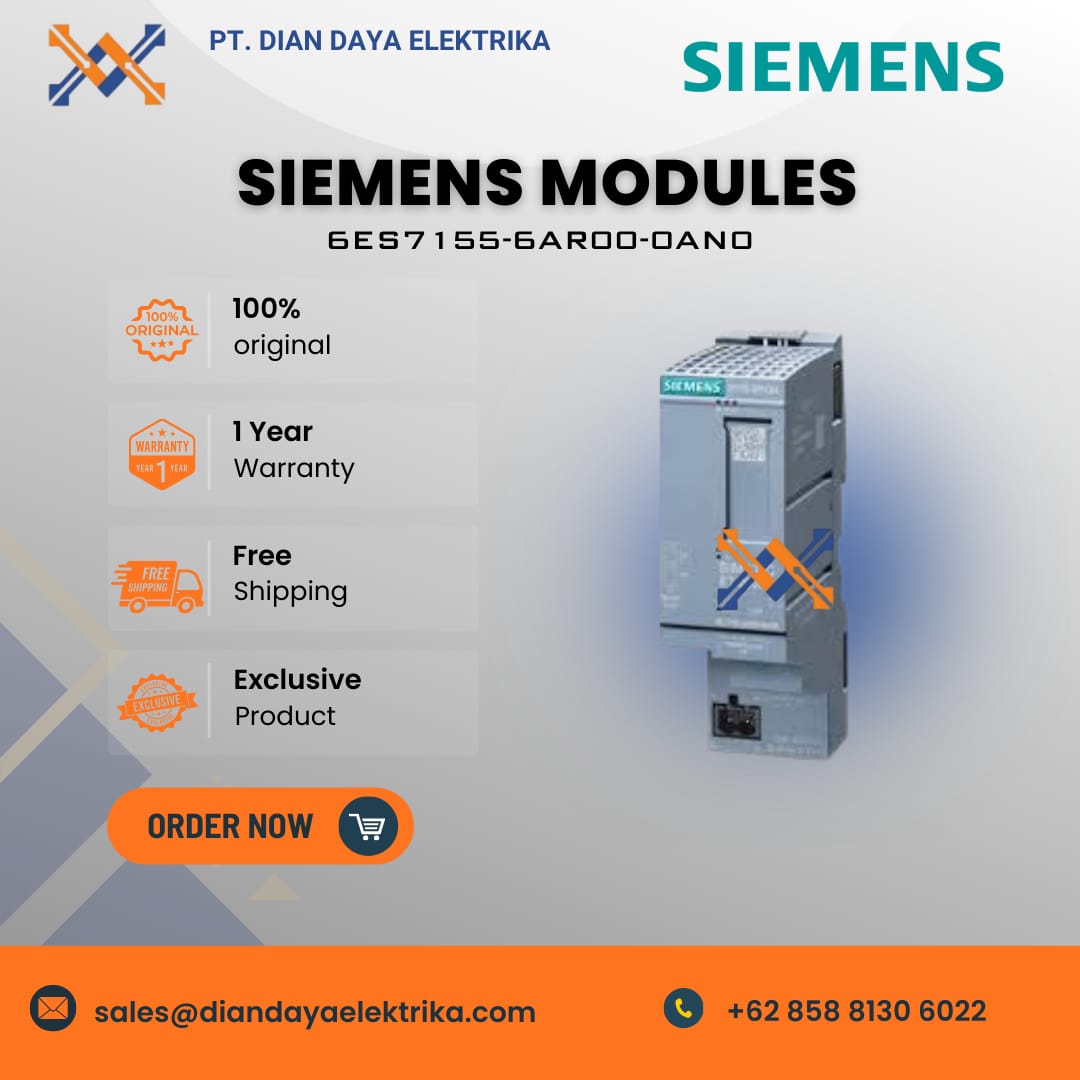

The Siemens module 6ES7155-6AR00-0AN0 is a PROFINET IM 155-6PN Basic interface module for the SIMATIC ET 200SP distributed I/O system.

Specification:

• Product Type: IM 155-6 PN BA (Basic) with 2 integrated RJ45 ports and a server module.
• Connectivity: Features 2 RJ45 sockets for PROFINET connection, functioning as an integrated switch.
• Capacity: Supports up to a maximum of 12 I/O modules within the ET 200SP system.
• Power Supply: The rated supply voltage is 24 V DC (SELV/PELV), with a permissible range of 19.2 V to 28.8 V.
• Functions: Supports I&M data functions (I&M0 through I&M3) and single module hot swapping during operation.
• Configuration: Can be configured/integrated using STEP 7 TIA Portal starting from version V13 SP1.
• Design: Features compact dimensions with a width of 35 mm, height of 117 mm, and depth of 74 mm, weighing approximately 125 g.

This module is designed for industrial automation applications requiring high-speed communication and reliability in robust environments.
