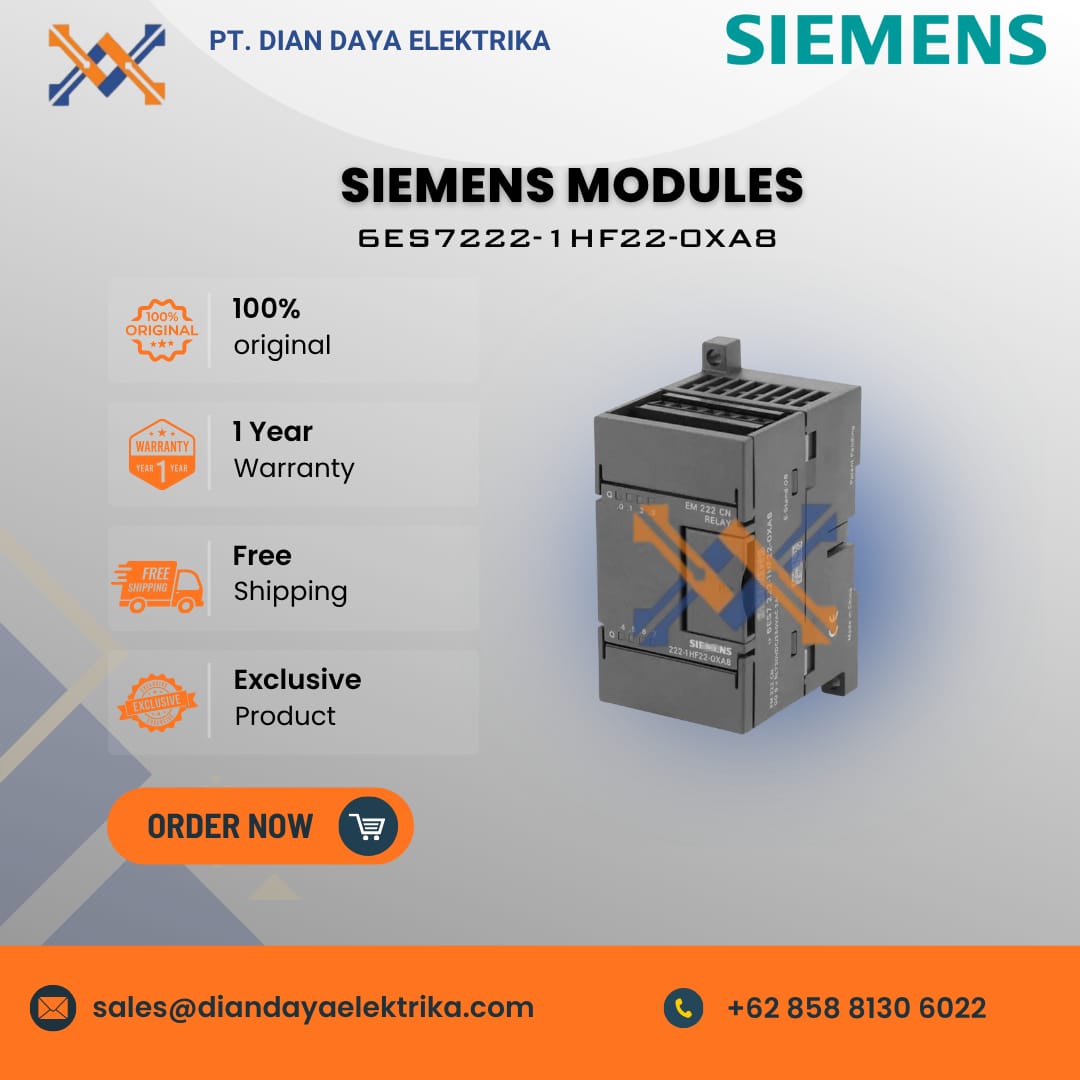

Siemens Modules 6ES7222-1HF22-0XA8

The Siemens 6ES7222-1HF22-0XA8 is a SIMATIC S7-200 CN digital output expansion module that provides eight relay outputs for use exclusively with S7-22X CPUs.

Specification:

• Module Type: Digital Output Module EM 222.
• Compatibility: Exclusively for SIMATIC S7-200 CN S7-22X CPUs.
• Number of Outputs: 8 digital outputs.
• Output Type: Relay outputs.
• Output Current Rating: 2 A per output.
• Short-Circuit Protection: Not available.
• Power Loss (typical): 2 W.
• Connection Method: Plug-in I/O terminals.
• Dimensions (W x H x D): Approximately 45 mm x 80 mm x 62 mm.
• Weight (approx.): Around 170 g.

The module is a reliable solution for controlling a wide range of external devices, such as actuators, contactors, and solenoids, in various automation applications.
