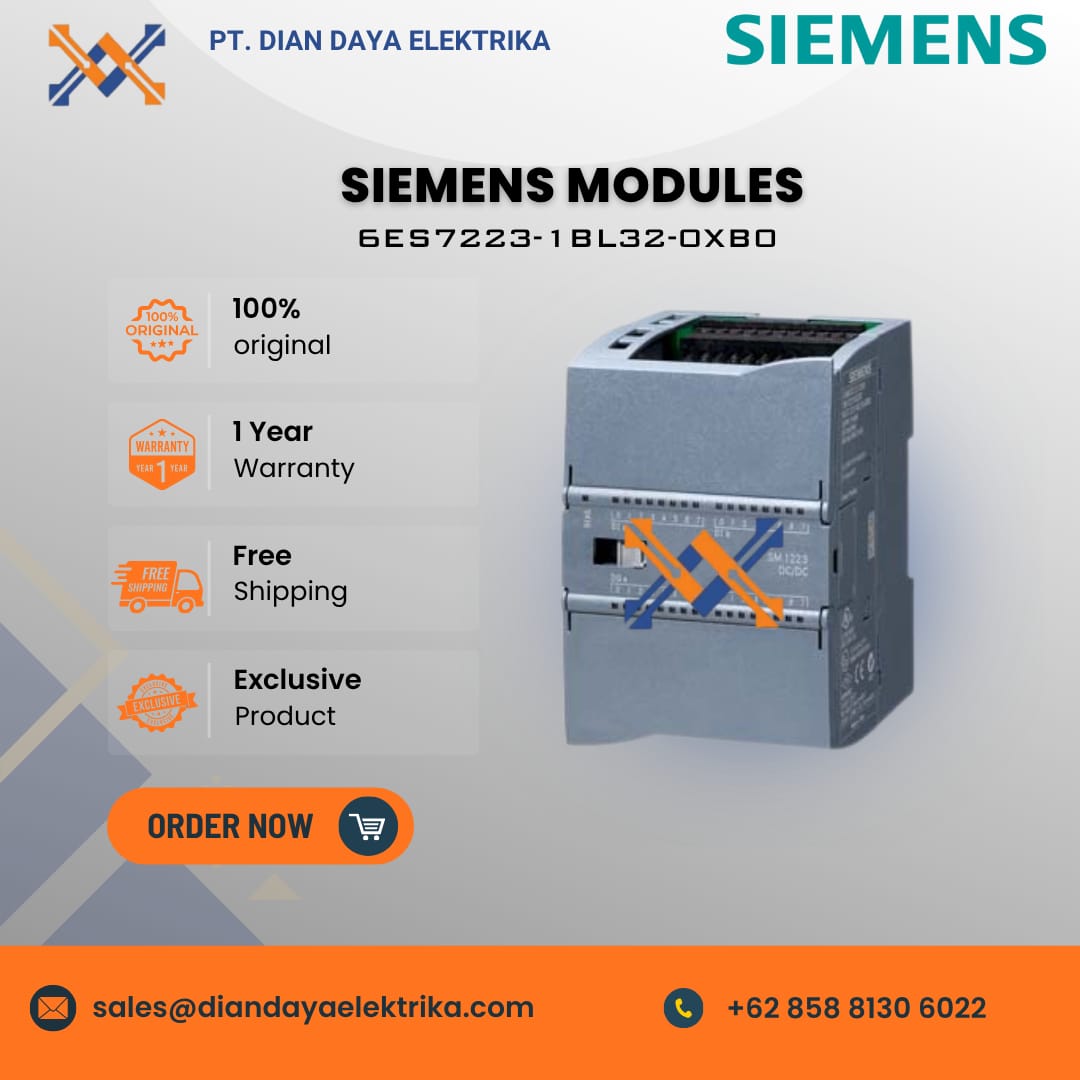

Siemens Modules 6ES7223-1BL32-0XB0

The Siemens 6ES7223-1BL32-0XB0 module is a digital input/output module designed for use with the SIMATIC S7-1200 Programmable Logic Controller (PLC) system.

Technical Specification:

• Operating Voltage : 24 V DC.
• Current Draw from backplane bus : Max. 185 mA at 5 V DC.
• Number of Digital Inputs : 16.
• Number of Digital Outputs L: 16 (transistor).
• Dimensions (WxHxD) : 70 mm x 100 mm x 75 mm.
• Weight : Approx. 310 g.

Key Features:

• Product Type: SM 1223 Digital I/O Module.
• I/O Count: It provides 16 digital inputs (DI) and 16 digital outputs (DQ).
• Input Specification: The inputs are rated for 24 V DC and support both sink and source configurations.
• Output Specification: The outputs are transistor type, with a maximum switching current of 0.5 A per output point.
• Supply Voltage: The module requires a 24 V DC supply voltage, with a permissible range of 20.4 V to 28.8 V.
