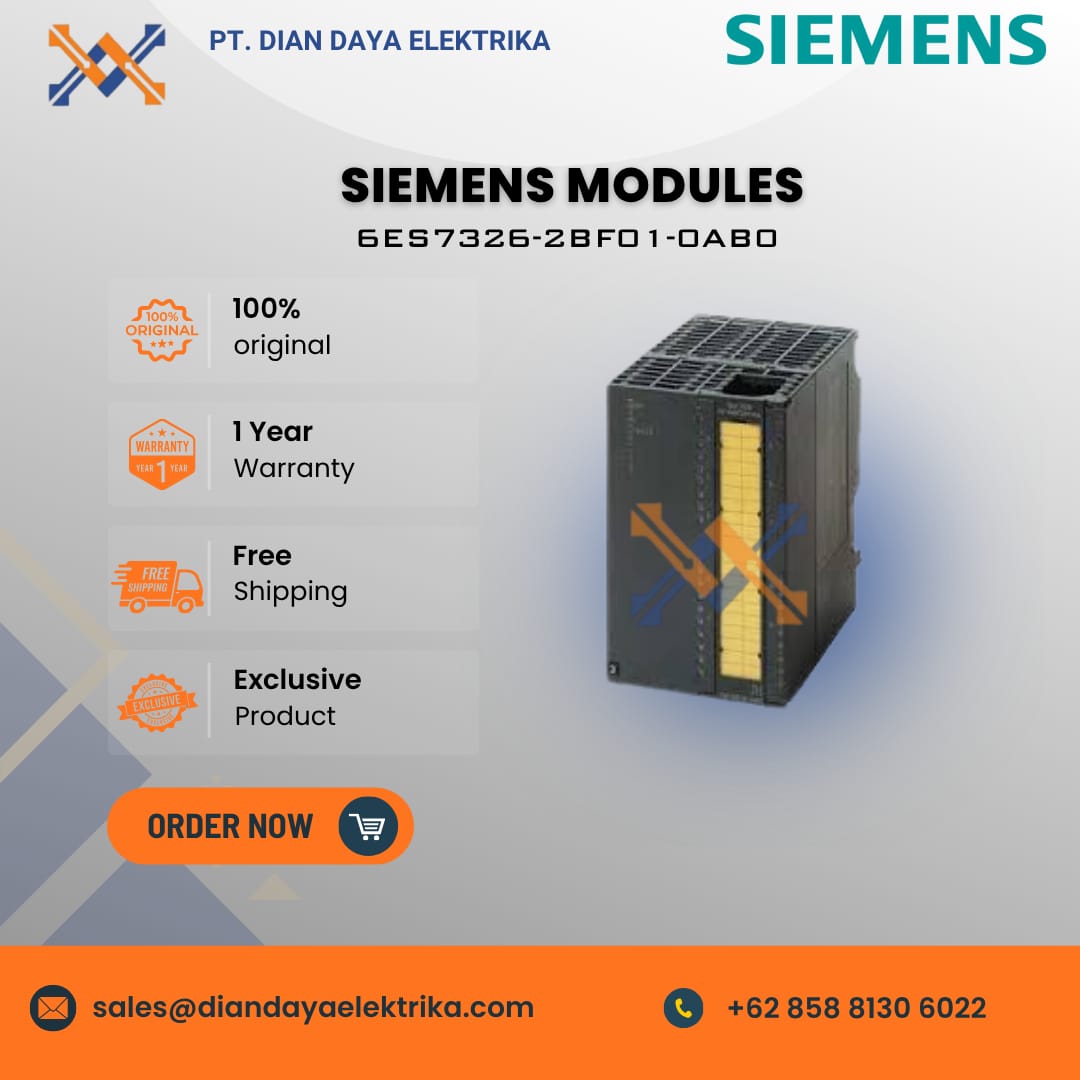

Siemens Modules 6ES7326-2BF01-0AB0

The Siemens 6ES7326-2BF01-0AB0 module is a fail-safe digital output module designed for the SIMATIC S7-300 automation system, providing high reliability for industrial safety applications.

Technical Specification:

• Rated Load Voltage: 24 V DC.
• Output Current per Channel: Max. 2 A.
• Dimensions (HxWxD): Approx. 125 x 80 x 120 mm.
• Weight: Approx. 0.465 kg.
• Connector: 40-pin front connector required.

Key Features:

• Product Type: Fail-safe digital output module (SM 326, F-DO).
• Number of Outputs: Features 10 digital outputs.
• Operating Voltage: Operates on a 24 V DC power supply.
