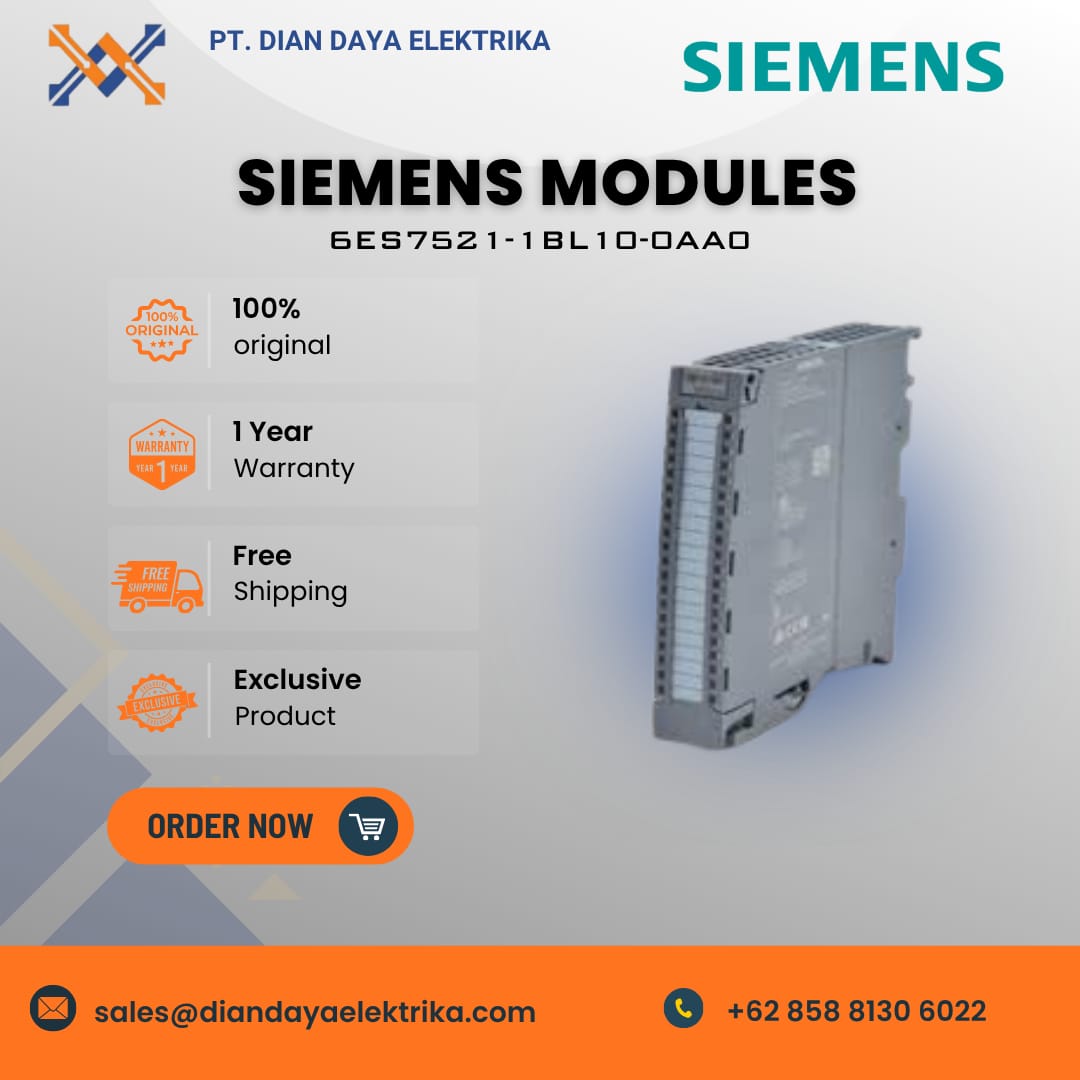

Siemens Modules 6ES7521-1BL10-0AA0

The Siemens 6ES7521-1BL10-0AA0 module is a high-performance SIMATIC S7-1500 digital input module designed for industrial automation applications. It provides 32 digital input channels and includes a push-in type front connector for easy installation.

• Product Type: Digital Input module (DI 32x24VDC BA) for the Siemens SIMATIC S7-1500 industrial automation control system.
• Number of Channels: Features 32 digital inputs, arranged in two groups of 16 channels, with a rated input voltage of 24 V DC.
• Design: Built for demanding industrial environments, it has compact dimensions (25 mm wide x 147 mm high x 129 mm deep) to optimize control cabinet space.
• Functions: Supports I&M data functions (Identification & Maintenance) I&M0 to I&M3 and prioritized startup, but does not support isochronous mode.
• Configuration: The module can be configured and integrated using STEP 7 TIA Portal engineering software, version V13 or later.
• Power Consumption: Typical power consumption from the backplane bus is 1.05 W, with typical power loss around 3 W.
