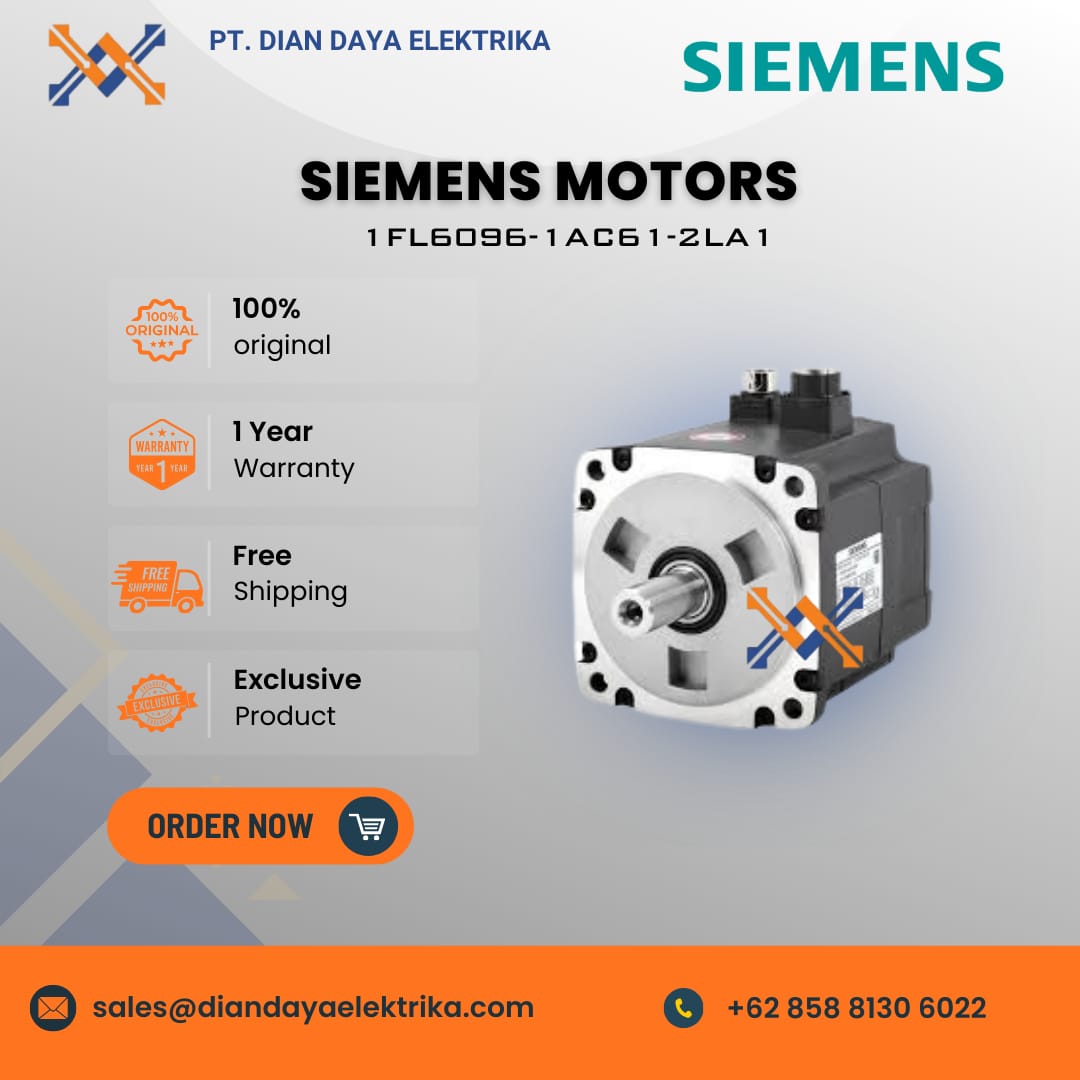

Siemens Motors 1FL6096-1AC61-2LA1

The Siemens Motor 1FL6096-1AC61-2LA1 is a high-inertia, permanent-magnet synchronous servo motor from the SIMOTICS S-1FL6 series, designed to be compatible with the SINAMICS V70 and V90 frequency converters.

Specification:

• Motor Type: Permanent-magnet synchronous servo motor, High Inertia.
• Rated Power: 7 kW (approx. 9.52 hp).
• Operating Voltage: 3 AC 400 V.
• Rated Speed: 2000 rpm.
• Static Torque (M0): 40 Nm.
• Rated Torque (MN): 33.4 Nm.
• Max. Torque: 90 Nm.
• Shaft Height: 90 mm.
• Weight: Approx. 39 kg

Features:

• Optimized Performance: This motor is part of a seamless servo drive system that ensures high dynamic response and precise motion control, suitable for demanding industrial applications.
• Robust Design: Features a rugged mechanical design with IP65 degree of protection for the entire motor, including the connectors, ensuring reliability in industrial environments.
• High Overload Capacity: The motor has a 300% overload capacity, allowing for high acceleration and shorter cycle times.
• Versatile Applications: Commonly used in a variety of automation tasks, such as handling systems, automated assembly lines, packaging machinery, and CNC equipment.
