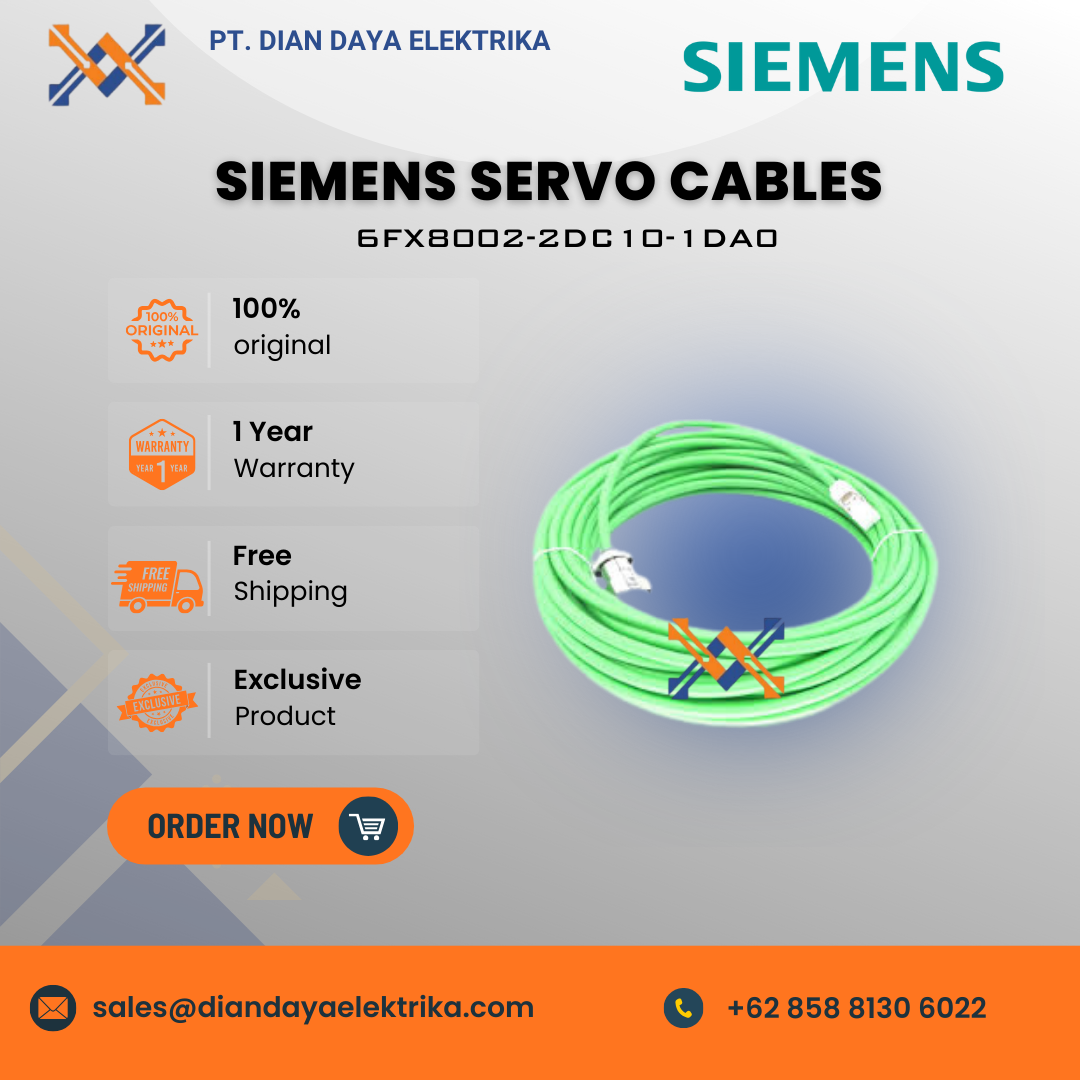

Siemens Servo Cables 6FX8002-2DC10-1DA0

The Siemens servo cable 6FX8002-2DC10-1DA0 is a pre-assembled signal cable from the MOTION-CONNECT 800PLUS series, specifically designed for DRIVE-CLiQ signal transmission in industrial automation systems like the SINAMICS S120.

Specification:

Cable Type: Pre-assembled signal cable/cordset.
Length: It has a length of 30 meters.
Brand: Siemens.
Country Of Origin: Germany
Module Side Connector: Equipped with an RJ45 connector with IP20 protection rating.
Motor Side Connector: Features a DRIVE-CLiQ connector with an IP67 protection rating.
Product Series: Part of the MOTION-CONNECT 800PLUS range, approved for lengths up to 75 meters.
Outer Diameter (Dmax): Approximately 7.1 mm.
Material: The cable sheath material is PUR (Polyurethane).

This cable is used to connect components such as servo motors and drive modules in Siemens motion control systems, ensuring reliable data communication via the digital DRIVE-CLiQ interface.
