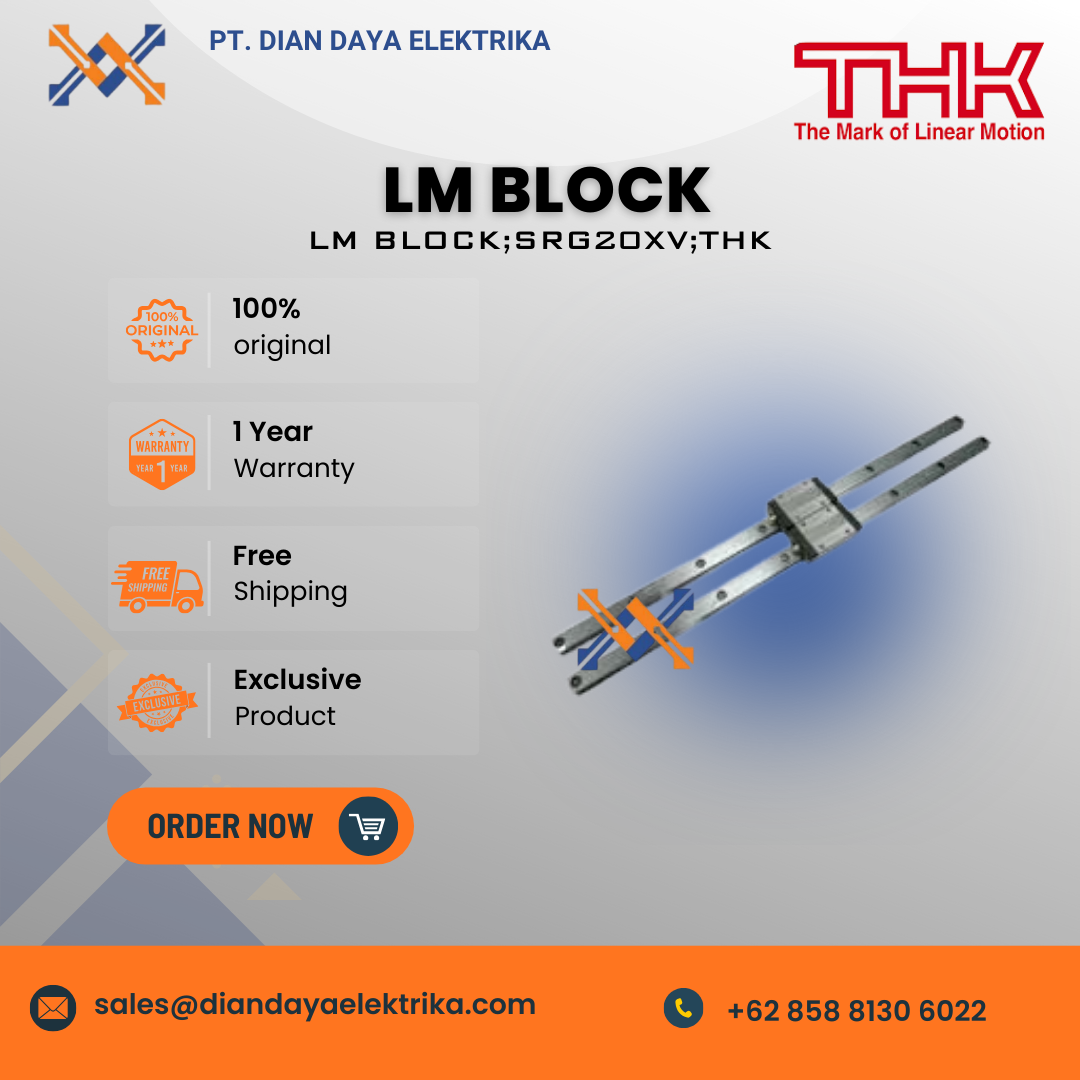

THK LM BLOCK SRG20XV

THK LM Block SRG20XV is a high-precision linear motion guide component designed for ultra-heavy load applications, utilizing roller-type rolling elements for superior rigidity and low friction.

Specification:

• Size: 20 (indicates rail and block dimensions).
• Basic Static Load Rating (C₀): Approximately 46.9 kN.
• Basic Dynamic Load Rating (C): Approximately 21 kN.
• LM Block Dimensions:
  • Total height (M): 30 mm
  • Block width (W₂): 12 mm
• Material: Generally carbon steel or stainless steel, depending on options.

Capable of receiving balanced loads in all directions (radial, reverse-radial, and lateral) due to a 45° contact angle design, ensuring stability regardless of mounting orientation.
